Swimming Pool system

Key Facts

A proven underwater system.

For swimming pools with chlorinated water. For public and private swimming pools as well as wellness areas and Spas. For external and internal swimming pools.

With the swimming pool system from SCHOMBURG you can rely on our experience. For public swimming pools with high frequency of use, private wellness oases, Spas or pools in interior or exterior areas. It can be a success with care in the implementation and the swimming pool system from SCHOMBURG.

The product combination from the epoxy resin-based barrier primer ASODUR-SG3 and the hybrid-waterproof membrane AQUAFIN-RS300 creates a watertight section against water under pressure. The highly water-stable tile adhesives SOLOFLEX and UNIFIX-S3 offer a permanent solid bond underwater. Your work will profit from a self-contained and approved system with components that are ideally matched to your work.

The advantages

  • A 10 year established system in over 150 public swimming pools.
  • A simple system with few products for your application assurance.
  • An optimum application system for each work sequence.

Products

AQUAFIN-RS300
ASOCRET-HS-FLEX
ASOCRET-M30
ASODUR-EV200
ASO-EZ4
ASO-Joint-Sleeve-Floor
ASO-Joint-Sleeve-Wall
ASO-Joint-Tape-2000
ASO-Joint-Tape-2000-Corner
ASO-Unigrund-GE
CRISTALLFUGE
CRISTALLFUGE-EPOX
SOLOFLEX
UNIFIX-S3
Print page

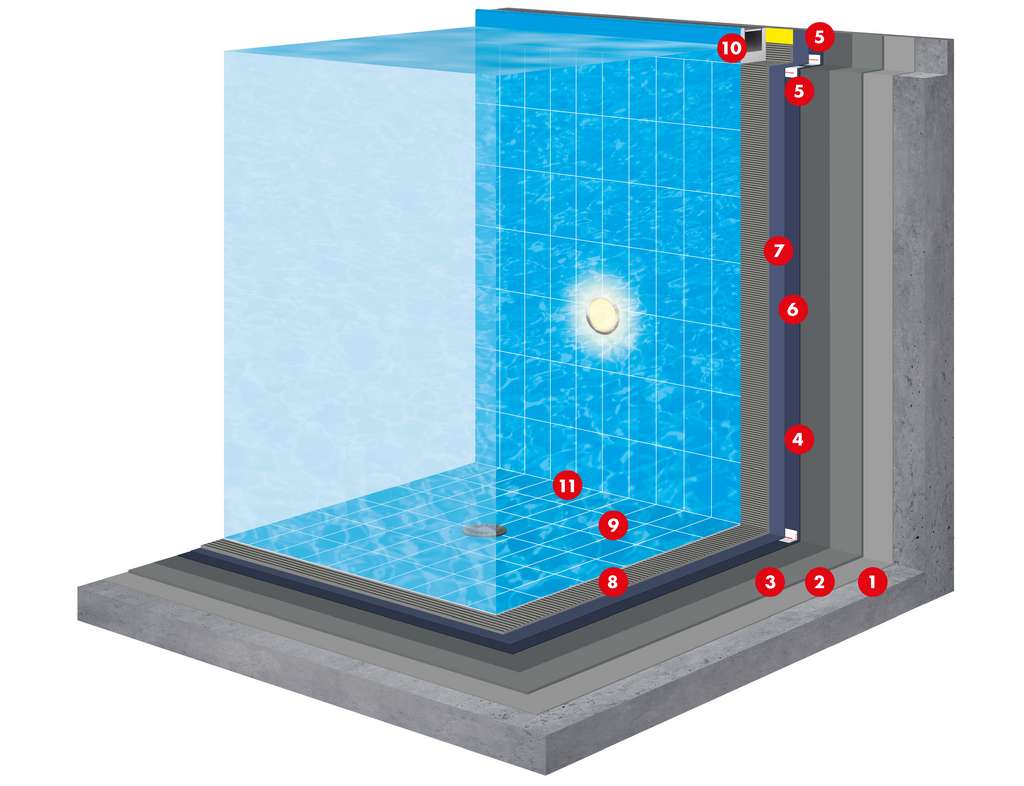

1 Substrate preperation

  1. Mechanical removal of adhesion inhibiting layers

  2. Producing a bonding coat with ASOCRET-HS-FLEX for a bonded screed to the floor area and with ASOCRET-M30 to the wall area, provided that levelling or screed is necessary

  3. Producing a bonded screed with ASO-EZ4-PLUS to the floor area. Levelling with ASOCRET-M30 to the wall area

  4. Priming the substrate with ASO-UNIGRUND-GE

2 Creating bonded waterproofing

  1. Insertion of the ASO-Dichtbands-2000 and the pre-formed pieces ASO-Dichtband-2000 Ecken, ASO-Dichtmanschette-Wand and ASO-Dichtmanschette-Boden with AQUAFIN-RS-300
  2. Application of the first coat AQUAFIN-RS300
  3. Application of the second coat AQUAFIN-RS300 Both coats together must have a minimum dry film thickness of 2 mm (6 + 7)

(https://www.schomburg.com/de/de/produkte/aso-dichtband-2000)
(https://www.schomburg.com/de/de/produkte/aso-dichtmanschette-b)
(https://www.schomburg.com/de/de/produkte/aquafin-rs300)
(https://www.schomburg.com/de/de/produkte/aso-dichtmanschette-w)

3 Installation of tiles

  1. Laying the tiles in the Buttering-Floating method with SOLOFLEX or alternatively UNIFIX-S3

4 Grouting of tiles

  1. Grouting the walls and floors with CRISTALLFUGE or CRISTALLFUGE-EPOX

  2. Creating movement joints with ESCOSIL-2000-UW

5

  1. Forming a capillary breaking casting with ASODUR-EV-200 at a minimum joint width of 15 mm and a minimum joint depth of 50 mm
